Engineering & Projects

Turnkey Processing Plants

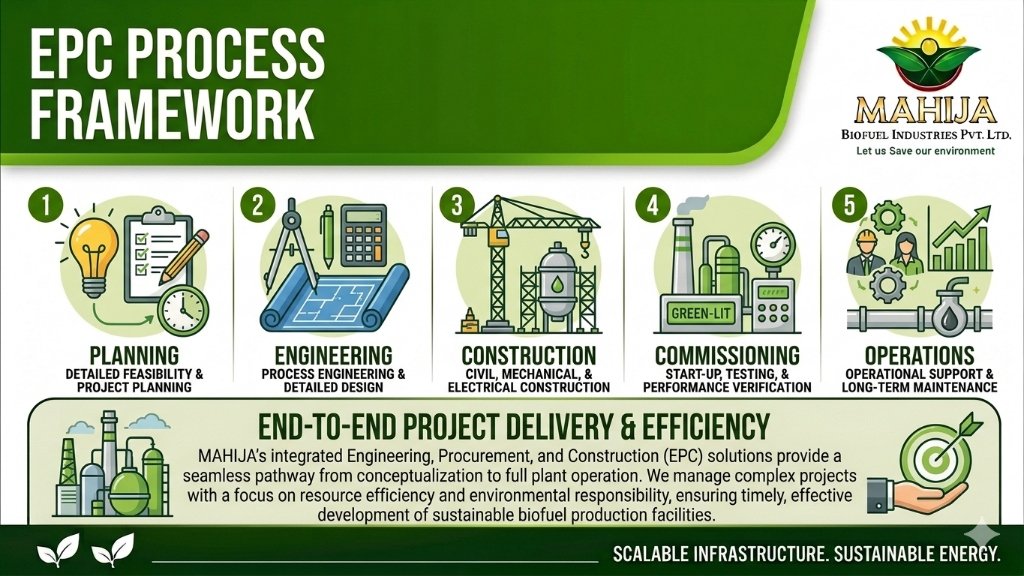

Complete engineering, fabrication, installation, and commissioning. Delivered on a turnkey basis anywhere in India.

Biodiesel Manufacturing 2 – 500 TPD

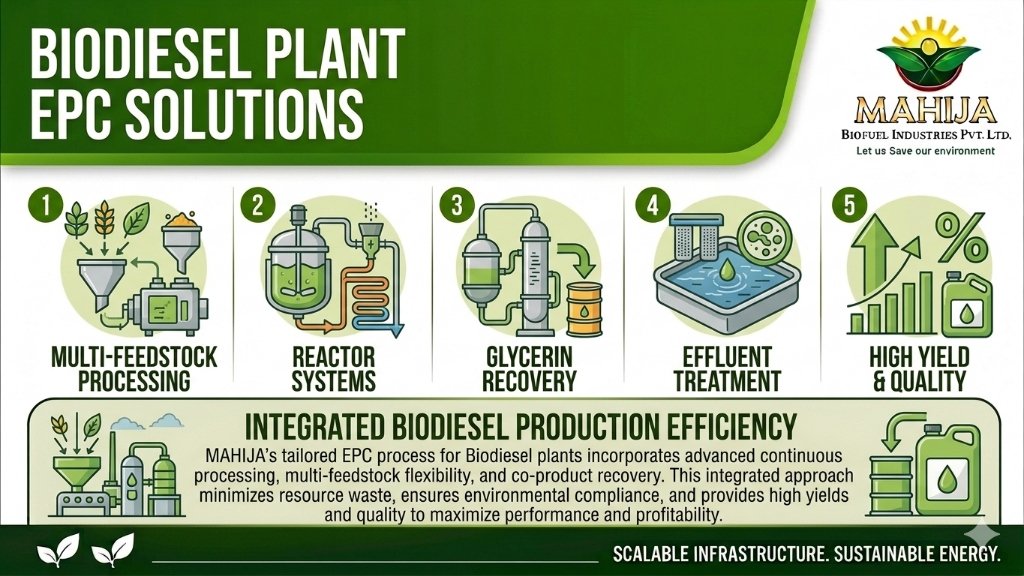

Biodiesel Manufacturing Plant

Complete turnkey biodiesel production plant utilizing continuous transesterification technology. Multi-feedstock design accepts vegetable oils, animal fats, and used cooking oil to produce ASTM D6751 / EN 14214 compliant B100 biodiesel.

Overview

Our Biodiesel Manufacturing Plants are delivered on a complete turnkey basis — from site survey and civil design, to equipment fabrication, installation, commissioning, and operator training. The plant employs a two-stage alkali-catalyzed transesterification process for maximum methyl ester yield (>98%). Integrated methanol recovery column reduces operating costs substantially.

Process Flow

1
Feedstock Pre-Treatment (FFA reduction, degumming, drying)
2
Transesterification Reaction (alkali catalyst + methanol)
3
Phase Separation (biodiesel + crude glycerol)
4
Methanol Recovery (distillation column)
5
Water Washing & Drying
6
Product Polishing & Quality Testing
7
Storage & Dispatch

Compatible Feedstocks

Refined / crude vegetable oils Palm oil & palm stearin Used cooking oil (UCO) Animal tallow & lard Jatropha & karanja oil
Capacity Range
2 – 500 TPD
Construction Material
MS (Carbon Steel) SS304 SS316

Key Highlights

  • Continuous two-stage transesterification for >98% yield
  • Multi-feedstock flexibility — no dedicated feedstock needed
  • Integrated methanol recovery reduces operating cost
  • Automatic PLC-SCADA control system available
  • Glycerol by-product recovery for additional revenue
  • ISO 9001:2015 fabrication quality

Interested?

Get a detailed proposal with capacity, layout, ROI analysis and delivery timeline.

Request Proposal Call +917016074249
Ethanol Production 10 – 100 KLPD

Ethanol Production Plant

High-efficiency ethanol production plant supporting multiple feedstocks — sugarcane juice, molasses, sweet sorghum, and waste grains. Engineered for maximum volumetric yield with minimum water and energy consumption.

Overview

MAHIJA's Ethanol Plant solutions are custom-engineered for India's National Biofuel Policy compliance and blending mandates. Incorporates state-of-the-art fermentation system with high-performance yeast strains delivering fermentation efficiency >92%. Produces Extra Neutral Alcohol (ENA), Rectified Spirit (RS), or dehydrated fuel-grade ethanol (>99.5% purity).

Process Flow

1
Feedstock Reception & Pre-treatment
2
Juice Extraction / Milling / Saccharification
3
Fermentation (continuous or batch)
4
Beer Well & CO₂ Recovery
5
Multi-column Distillation
6
Molecular Sieve Dehydration (for fuel-grade)
7
Effluent Treatment & ZLD

Compatible Feedstocks

Sugarcane juice (B-route) C-heavy molasses B-heavy molasses Sweet sorghum Maize / corn grain Broken rice & food-grain waste
Capacity Range
10 – 100 KLPD
Construction Material
SS304 SS316L Food-grade HDPE

Key Highlights

  • Higher ethanol yield per tonne of feedstock
  • 30–40% lower water consumption vs. conventional plants
  • Significantly lower energy (steam) consumption
  • Multiple feedstock flexibility in a single plant
  • ENA, RS, and anhydrous fuel ethanol (≥99.5%) grades
  • ZLD (Zero Liquid Discharge) configuration available
  • Fast ROI due to high profitability & govt. incentives

Interested?

Get a detailed proposal with capacity, layout, ROI analysis and delivery timeline.

Request Proposal Call +917016074249
Oil Neutralization 2 – 300 TPD

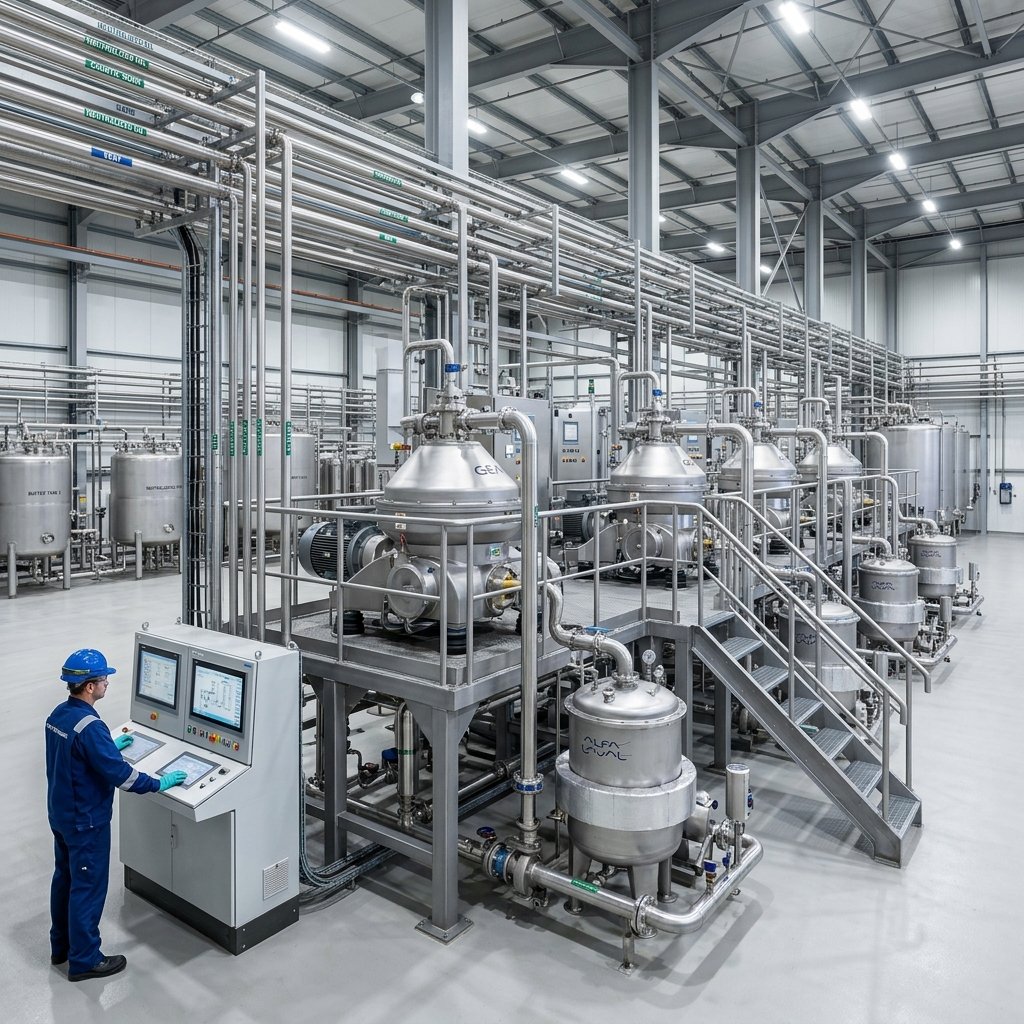

Oil Neutralization Plant

Continuous or batch oil neutralization plant for removal of free fatty acids (FFA) from crude vegetable oils. Features a dynamic high-shear mixer for superior soap-stock formation and minimal neutral oil losses.

Overview

MAHIJA's neutralization plants use a precision high-shear dynamic mixer that ensures intimate contact between caustic soda solution and the oil, resulting in complete saponification of FFA with minimal emulsification. Achieves lowest neutral oil loss in the industry (typically <0.8% above theoretical).

Process Flow

1
Crude Oil Pre-heating
2
Phosphoric Acid Degumming (optional, integrated)
3
Caustic Soda Addition & High-Shear Mixing
4
Soap-Stock Separation (disc-stack centrifuge)
5
Hot Water Washing
6
Neutral Oil Drying (vacuum)
7
Soap-Stock Acidulation (optional)

Compatible Feedstocks

Crude palm oil (CPO) Crude soybean oil Crude sunflower oil Rice bran oil (RBO) Mustard / Rapeseed oil Cottonseed oil
Capacity Range
2 – 300 TPD
Construction Material
SS304 SS316 Food-grade gaskets

Key Highlights

  • Dynamic high-shear mixer — superior soap-stock separation
  • Lowest neutral oil loss in class (<0.8% above theoretical)
  • Continuous or batch configuration
  • High-speed disc-stack centrifuge separation
  • PLC-controlled caustic dosing for consistent FFA control
  • Can be integrated with degumming & bleaching stages

Interested?

Get a detailed proposal with capacity, layout, ROI analysis and delivery timeline.

Request Proposal Call +917016074249
Acid Degumming 5 – 300 TPD

Acid Degumming Plant

Standalone or integrated acid degumming plant for removal of phosphatides (gums) from crude vegetable oils using food-grade phosphoric acid and high-efficiency centrifugal separation.

Overview

Acid degumming converts non-hydratable phosphatides (NHP) into hydratable form for centrifugal removal. Uses precise phosphoric acid dosing (0.1–0.2% on oil) at 60–70°C. Reduces total phosphorous below 20 ppm. The separated lecithin-rich gums can be sold as a by-product.

Process Flow

1
Crude Oil Pre-heating (60–70 °C)
2
Phosphoric Acid Dosing & Intensive Mixing
3
Hydration Water Addition
4
Conditioning Tank (15–30 min residence)
5
Centrifugal Gum Separation
6
Lecithin (Gum) Drying & Storage
7
Degummed Oil to Neutralization

Compatible Feedstocks

Crude soybean oil (high-NHP) Crude rapeseed / canola oil Crude sunflower oil Crude palm oil Rice bran oil
Capacity Range
5 – 300 TPD
Construction Material
SS304 SS316L PTFE-lined dosing lines

Key Highlights

  • Reduces phosphorous to <20 ppm for downstream refining
  • Food-grade phosphoric acid dosing system
  • Hydratable & non-hydratable phosphatide removal
  • High-speed centrifuge (disc-stack or decanter)
  • Lecithin by-product recovery for commercial sale
  • Standalone or fully integrated with neutralization line

Interested?

Get a detailed proposal with capacity, layout, ROI analysis and delivery timeline.

Request Proposal Call +917016074249
